Installation of Heating Mats Step by Step – Can You Do It Yourself?

Modern Underfloor Heating Without Complicated Renovations

A few years ago, installing underfloor heating was mainly associated with major renovations, thick screeds, and complicated hydraulic installations. Today, modern heating mats allow for comfortable underfloor heating to be installed much faster and significantly less invasively.

It is the simplicity of installation that has made electric heating mats very popular:

• during apartment renovations,
• bathroom modernizations,
• finishing developer apartments,
• in modern energy-efficient homes.

However, many investors ask themselves:
can a heating mat be installed by oneself?

In practice, modern installation kits have been prepared specifically to simplify the entire installation process.

What Does a Heating Mat Kit Include?

Ready-made heating mat kits from TERMOFOL contain the elements needed to install underfloor heating.

A standard kit includes:

• heating mat,
• protective tube (conduit) for the temperature sensor,
• installation instructions,
• installation components depending on the kit configuration.

The entire system is designed to maximize ease of installation and minimize the risk of errors during setup.

A significant advantage of heating mats is that the heating cable is already factory-arranged on the mounting grid. This means there is no need to lay out cables on the floor manually, which significantly speeds up the work.

Preparing the Substrate — The Most Important Stage of Installation

Proper preparation of the substrate has a huge impact on the subsequent operation of the entire system.

The surface should be:

• clean,
• dry,
• stable,
• properly leveled.

In practice, before installation, it is necessary to thoroughly remove:

• dirt,
• adhesive residues,
• loose fragments of the substrate,
• irregularities that may hinder the adhesion of the mat.

In many cases, priming the substrate is also used to improve the adhesion of the installation layers.

If the installation is being done in a bathroom or a room exposed to moisture, it is also important to ensure proper waterproofing.

How Is the Heating Mat Installed?

The installation process itself is relatively simple, especially in the case of straightforward rooms with regular shapes.

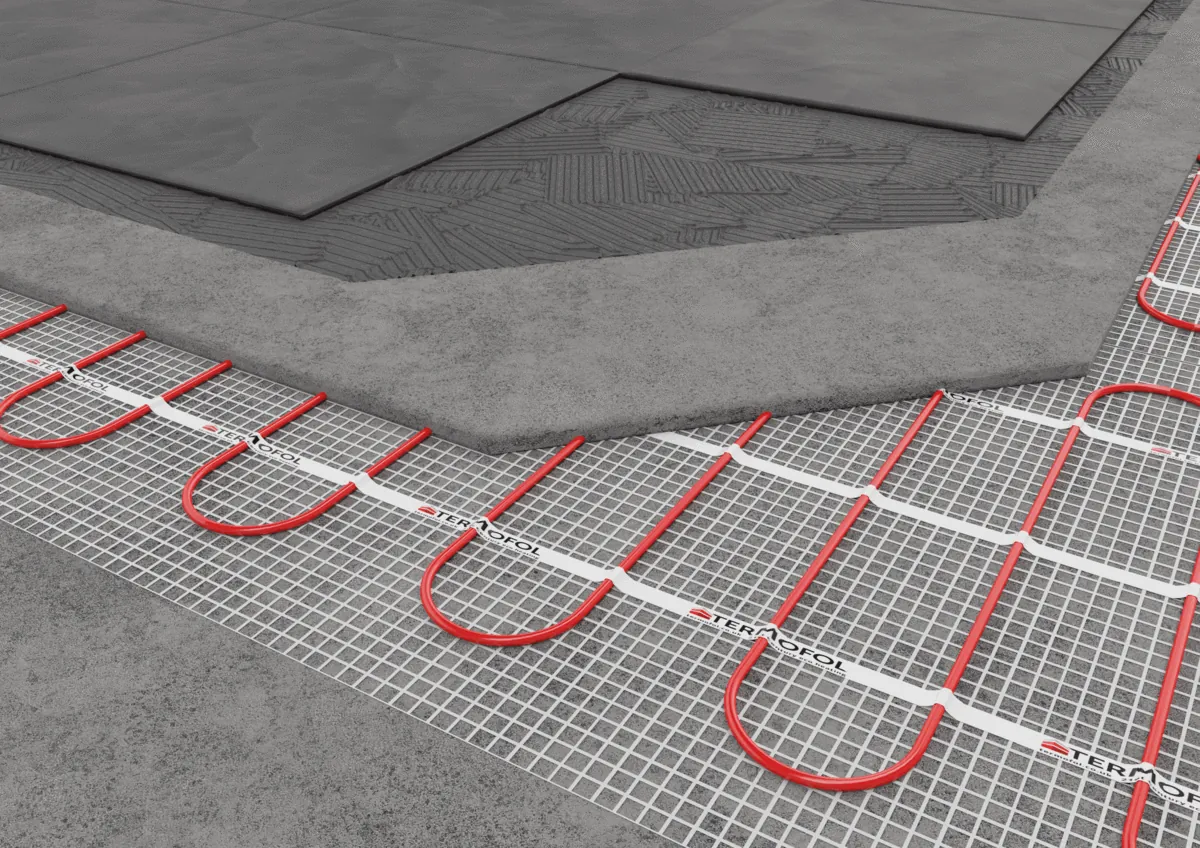

The heating mat is laid directly on the prepared substrate. The grid can be cut and rotated, allowing for easy adaptation of the system to the room layout. However, it is important to remember that the heating cable itself must not be cut.

After laying out the mat, the temperature sensor is installed in the protective tube. Then, the entire system is covered with a layer of adhesive for tiles or self-leveling compound — depending on the type of floor finish.

Finally, the system is connected to the thermostat that controls the temperature.

In practice, most investors hire a qualified electrician for the electrical connection, while the preparation of the substrate and laying out the mat are often done independently.

Where Are Heating Mats Most Often Installed?

Heating mats are most commonly used:

• in bathrooms,
• kitchens,
• living rooms,
• hallways,
• in apartments after renovations.

The system works particularly well under ceramic tiles and stoneware, as these materials conduct heat very well.

Another advantage is the low thickness of the entire system, which means that installation does not significantly raise the floor level.

The Most Important Rules for Proper Installation

Although the installation of heating mats is relatively simple, there are several rules to keep in mind.

First of all:

• the heating cable must not be shortened,
• the mat should not be laid under fixed structures without clearance,
• the temperature sensor must be placed in the protective tube,
• appropriate installation distances must be maintained,
• the system should be checked before covering it with tiles.

It is also very important to measure resistance before and after installation. This ensures that the system has not been damaged during the installation work.

The Most Common Mistakes During the Installation of Heating Mats

In practice, most problems with underfloor heating arise not from the product itself, but from installation errors.

The most common include:

• damage to the cable during work,
• lack of proper substrate preparation,
• incorrect placement of the temperature sensor,
• installation under furniture structures,
• starting the system before the adhesive has fully dried.

It is worth remembering that starting the heating too quickly can lead to damage to the installation layers and problems with the tiles.

Therefore, it is crucial to follow the manufacturer's recommendations regarding drying times.

Is It Worth Installing Heating Mats Yourself?

Modern heating mat kits have been designed to simplify installation as much as possible. In the case of simple rooms, many investors manage to prepare the substrate and lay out the system without any issues.

However, the most important thing is to strictly follow the installation instructions and have the electrical connection performed by a qualified person.

Thanks to the simple installation, low thickness, and quick operation, heating mats have become one of the most popular ways to implement modern underfloor heating in apartments and homes.

Check out the available TERMOFOL heating mat kits and choose a solution tailored to your interior.
