Thermostat TF-H1 Black

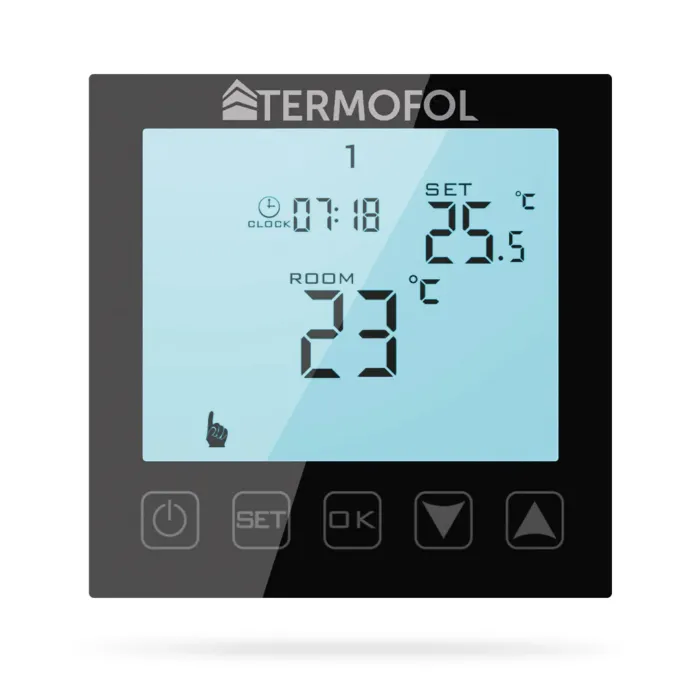

TERMOFOL TF-H1 Mark II Thermostat – Programmable Heating Control

TERMOFOL TF-H1 Mark II is a programmable thermostat designed for controlling electric heating systems, including heating using heating foils and mats. Equipped with a clear LED panel with touch buttons, it allows precise temperature control and adjustment of heating operation to the daily rhythm of users.

The regulator works with a built-in air temperature sensor and an external NTC floor sensor included in the package. It can control heating based on air temperature, floor temperature, or both sensors simultaneously – with control of the maximum floor temperature.

TF-H1 allows for the creation of a weekly heating schedule with up to 6 temperature periods per day. Available weekly layouts are 5+2, 6+1, and 7 days. In addition to automatic operation, manual mode can be used to temporarily change the temperature resulting from the schedule or activate vacation mode.

Main Features

• control of electric underfloor heating and other electric heating systems
• weekly programming 5+2, 6+1 or 7 days
• up to 6 heating periods per day
• automatic, manual, and vacation modes
• built-in air temperature sensor
• external NTC floor temperature sensor included
• ability to control air temperature, floor temperature, or both parameters simultaneously
• maximum floor temperature limitation
• open window detection function
• “Child Lock” button lock
• memory of device state after power loss
• temperature calibration and hysteresis setting
• measurement of energy consumption from the previous day and total consumption
• sensor failure indication and disconnection of heating in case of its damage
• LED panel with touch buttons
• flush mounting
• available in white and black versions

Main Technical Data

• power supply: 230 V AC, 50/60 Hz
• maximum switched current: 16 A
• maximum power of connected heating device without contactor: 3000 W
• programmable temperature range: 1–70°C
• factory range: 5–35°C
• accuracy: ±0.5°C
• floor sensor: NTC
• power consumption: <2 W
• dimensions: 86 × 86 × 27 mm
• warranty: 24 months

Internal Use

Thermostats TERMOFOL are designed for controlling electric heating systems inside buildings. They primarily cooperate with heating films and mats, allowing precise control of underfloor heating temperature, and suitable models also with wall and ceiling systems.

They perform well in houses, apartments, offices, and other utility rooms, allowing the heating operation to be adapted to the user's needs. Depending on the model, features such as schedule programming and remote control via WiFi are available.
