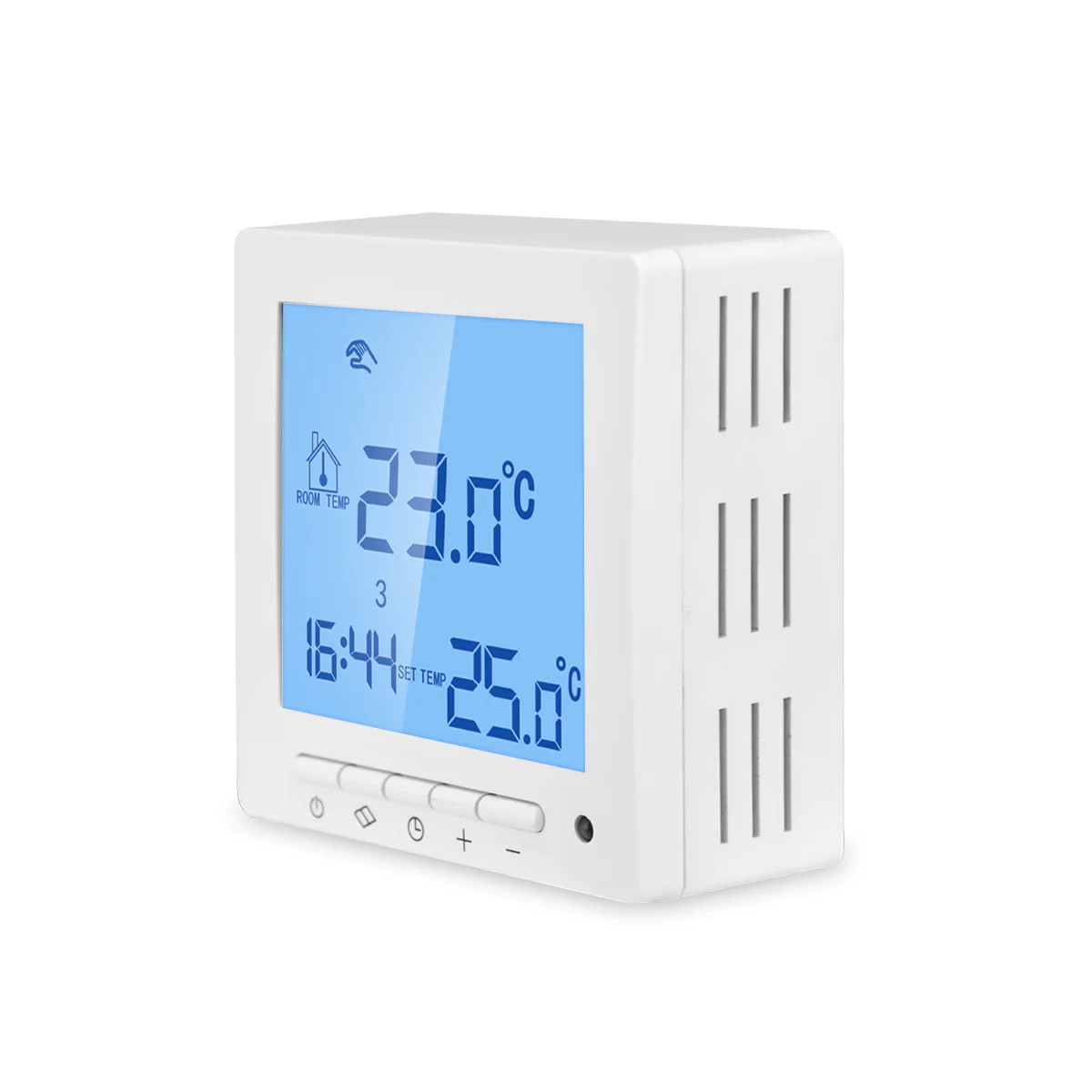

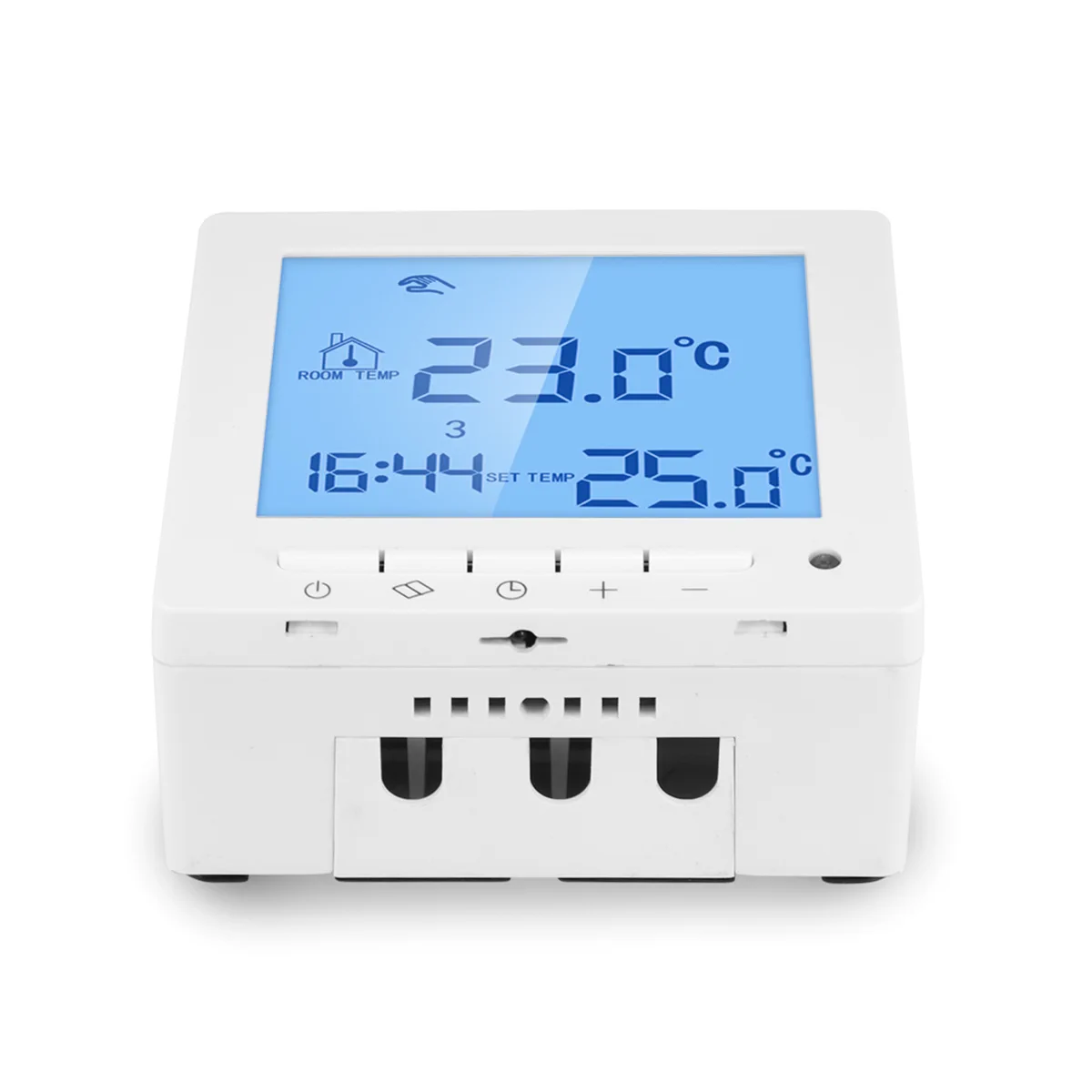

TERMOFOL TF-H2 Mark II – surface-mounted temperature controller

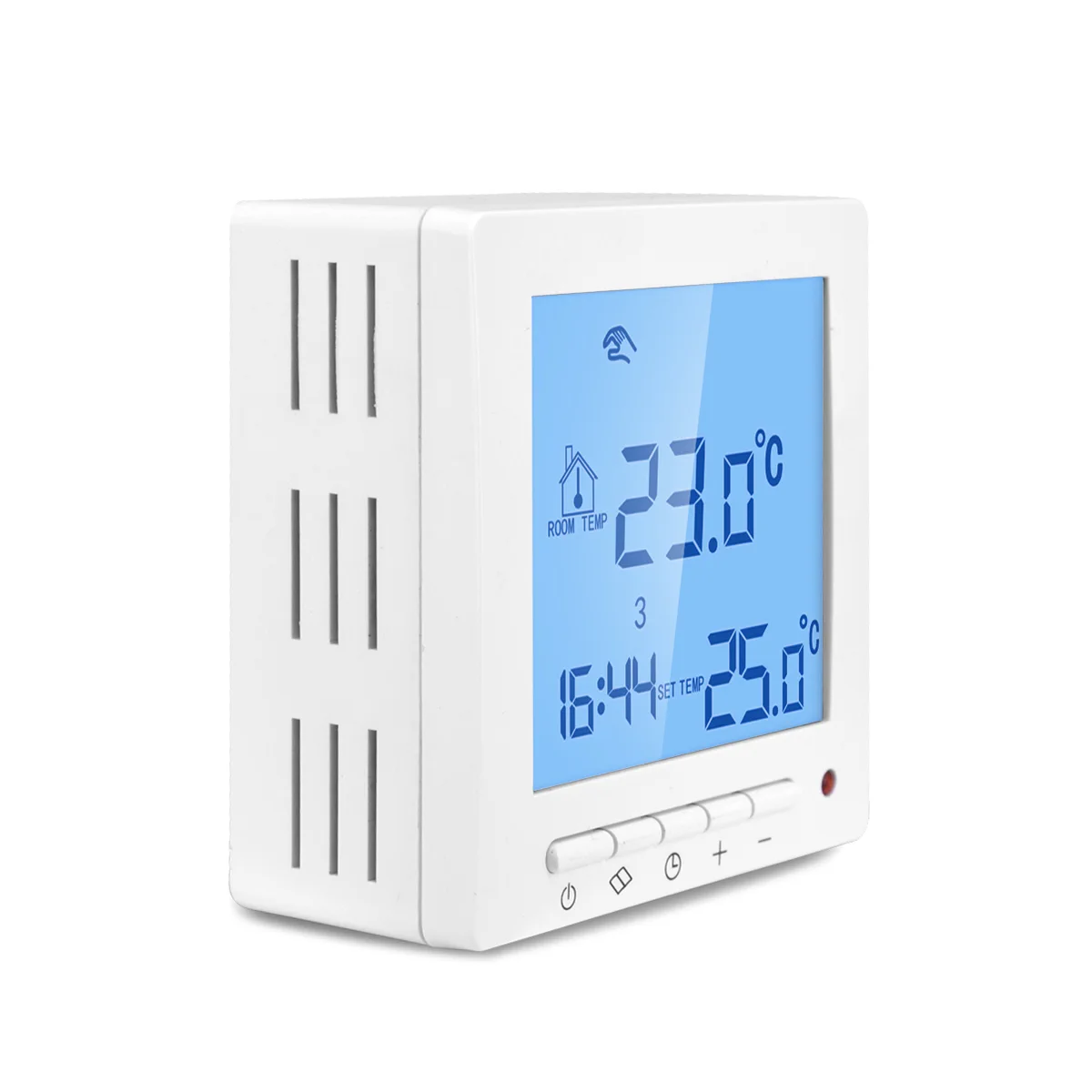

TERMOFOL TF-H2 Mark II is a programmable thermostat designed for controlling electric heating systems. It can work with underfloor, wall, and ceiling heating as well as electric heaters. It features a clear LCD display and is intended for surface mounting.

The thermostat uses a built-in air temperature sensor and an external NTC floor sensor included in the set. The user can choose one of three ways to control the temperature: based on air temperature, floor temperature, or room temperature with simultaneous limitation of the maximum floor temperature.

TF-H2 also allows automatic heating control according to a schedule. Available weekly schedules are 5+2, 6+1, or 7 days, and up to 6 heating periods with individually set temperatures can be programmed for a day.

Main features

• control of electric heating systems

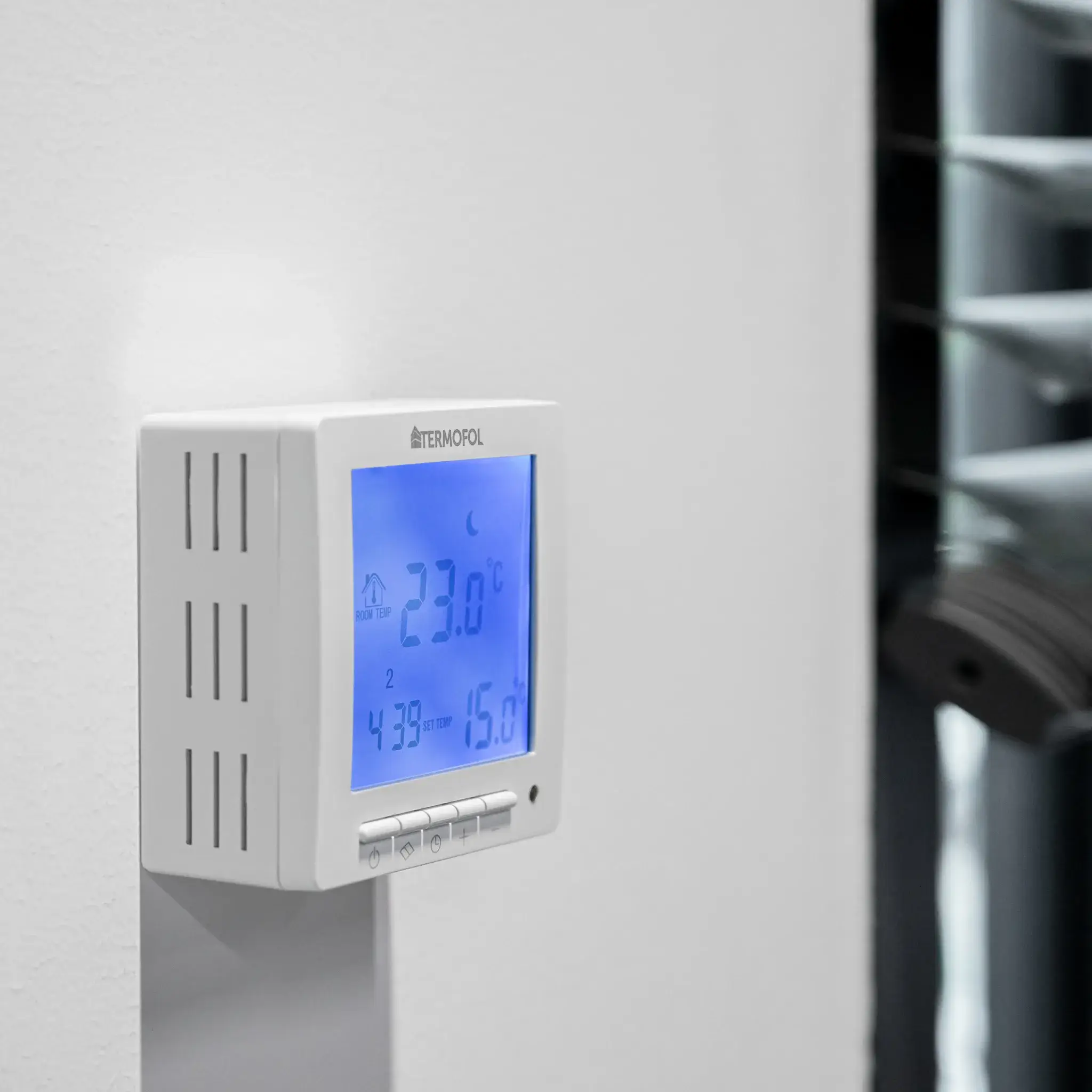

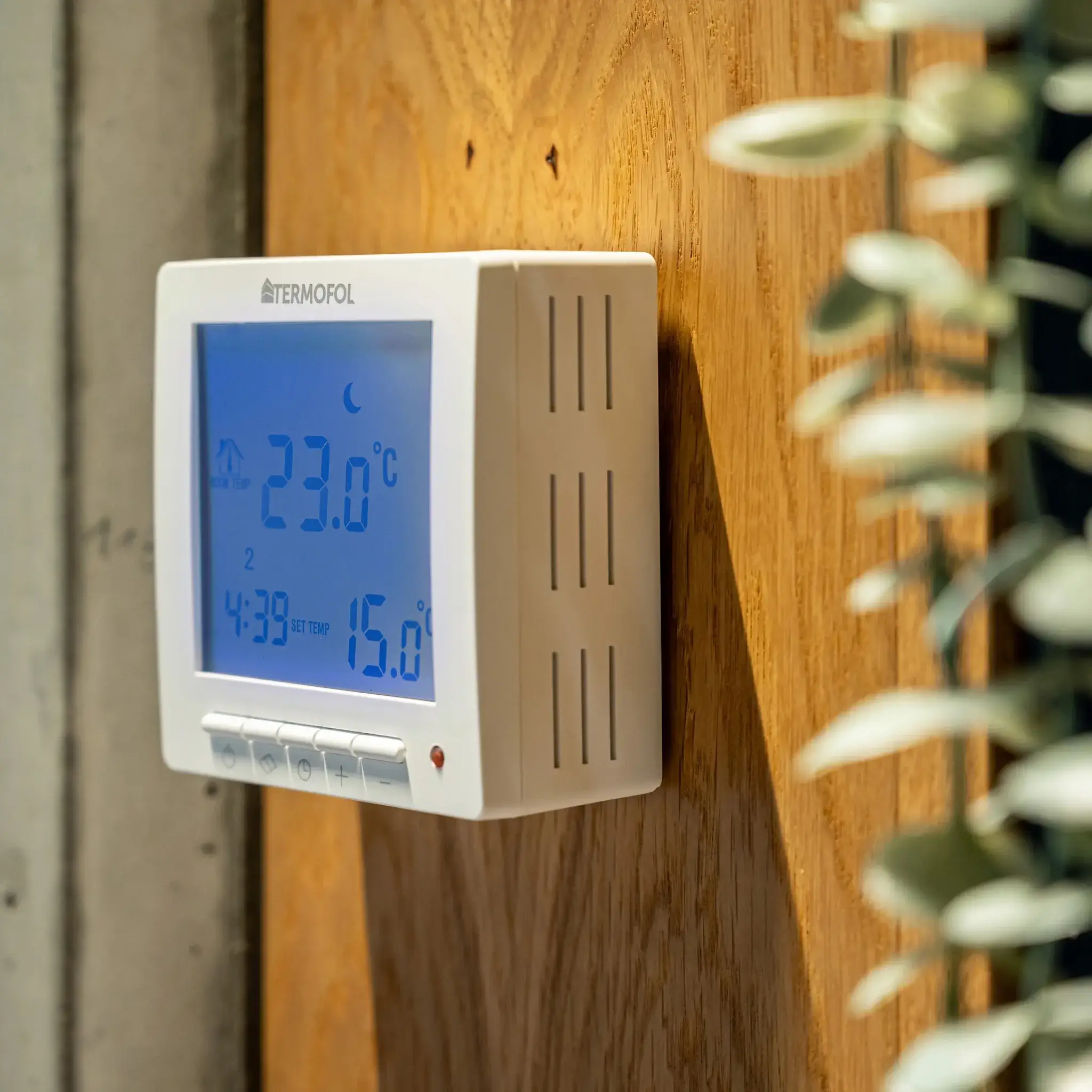

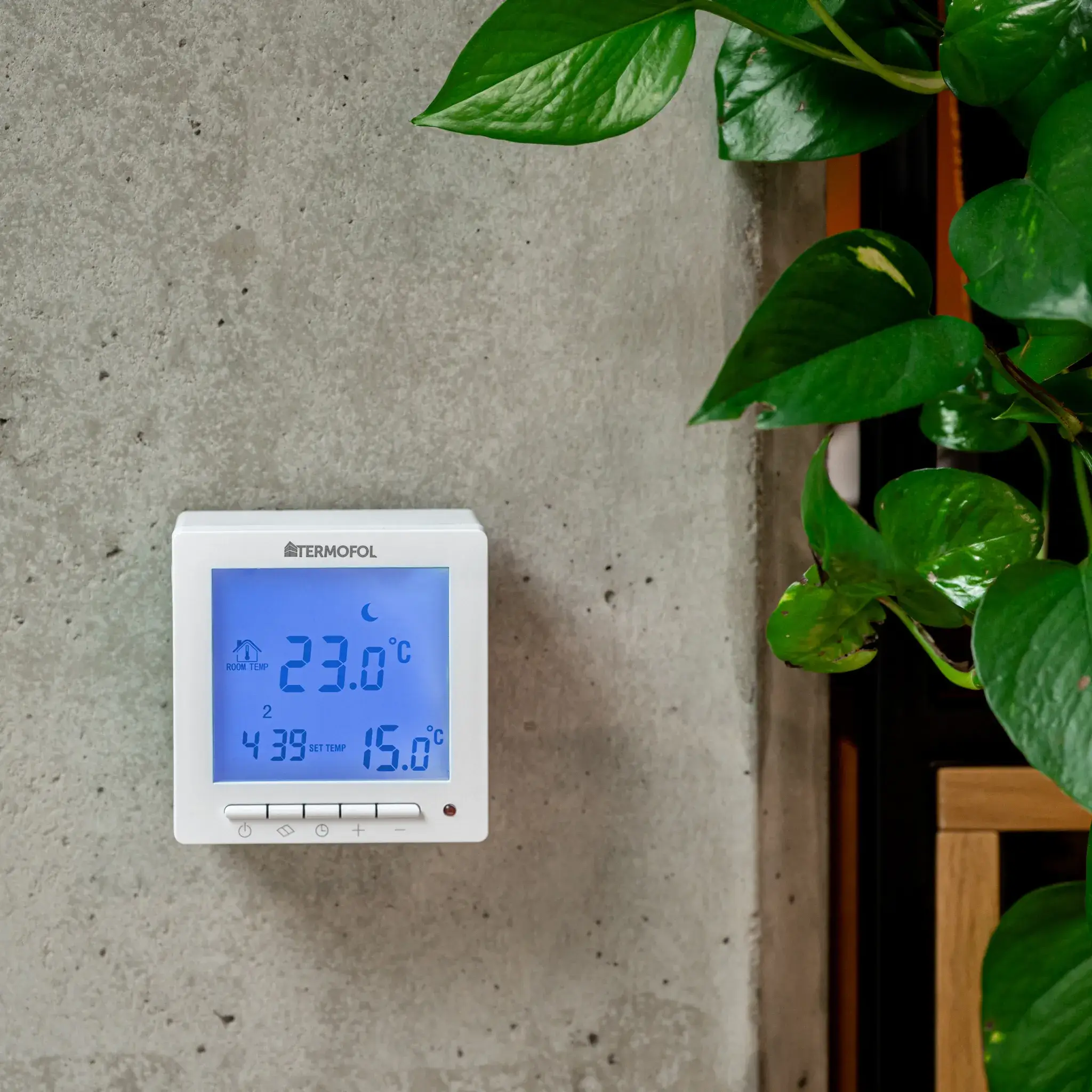

• surface mounting

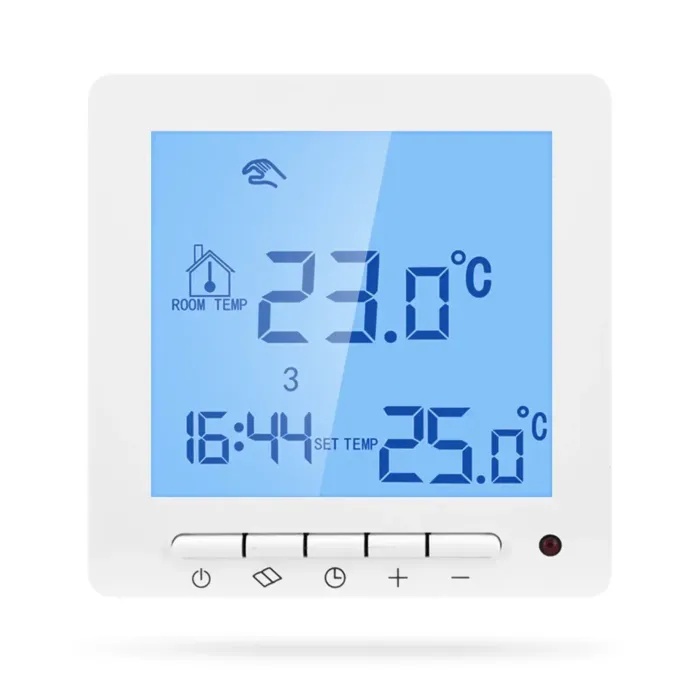

• LCD display
• manual and automatic control
• weekly programming 5+2, 6+1, or 7 days
• up to 6 heating periods per day
• ability to temporarily change the temperature during schedule execution
• built-in air temperature sensor
• external NTC floor temperature sensor included
• 3 ways to control temperature
• ability to set maximum floor temperature
• adjustable hysteresis of the external sensor
• temperature indication calibration
• ability to set minimum and maximum set temperature
• settings memory after power loss – configurable function
• indication of external temperature sensor damage

Technical data

• power supply: 230 V AC, 50/60 Hz
• maximum switching current: 20 A
• maximum power of directly connected heating device: 3600 W
• power consumption: <3 W
• programmable temperature range: 1–99°C
• factory range: 5–35°C
• accuracy: ±0.5°C
• protection class: IP20
• external sensor: NTC
• dimensions: 86 × 86 × 37 mm
• mounting method: surface-mounted

Internal Use

Thermostats TERMOFOL are designed for controlling electric heating systems inside buildings. They primarily cooperate with heating films and mats, allowing precise control of underfloor heating temperature, and suitable models also with wall and ceiling systems.

They perform well in houses, apartments, offices, and other utility rooms, allowing the heating operation to be adapted to the user's needs. Depending on the model, features such as schedule programming and remote control via WiFi are available.
